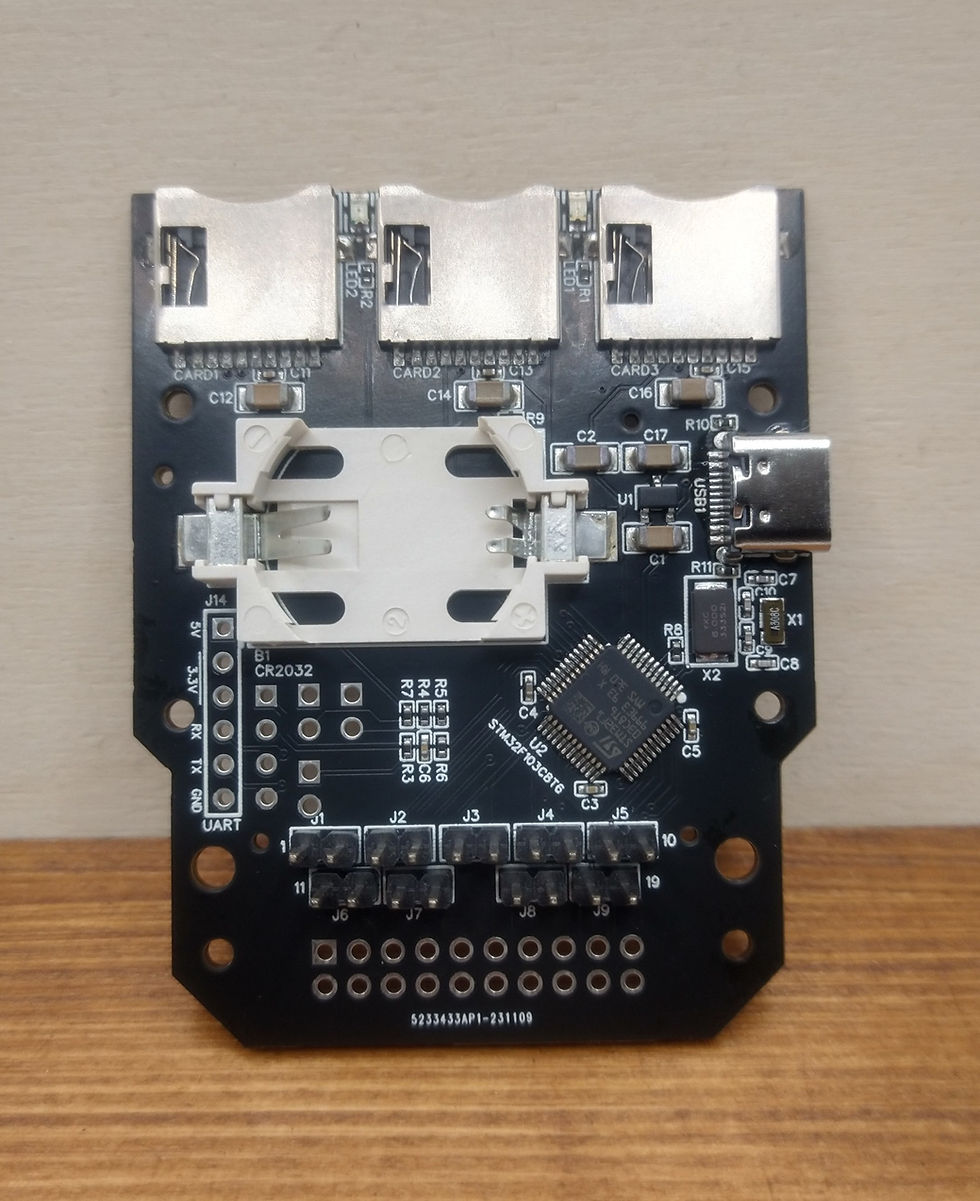

ACSI2STM hard drive emulator for Atari ST (STF, STE, MegaSTE...).
It is a hard disk emulator for Atari ST (STF, STE, MegaSTE...) based on ACSI2STM project.
The mode GemDrive is working on TOS 1.04, 1.60, 1.62 and 2.06 The mode ACSI is working on all ST, STF, STE, Mega and TT (TOS 1.00, 1.02, 1.04, 1.60, 1.62, 2.06 et 3.x) For Mega STE, Beware the carte is sitting in front of the VME slot.
On Mega STE, the GemDrive mode is not working in 16Mhz mode.
It plugs into the machine's external ACSI port. In GemDrive mode, a microSD card formatted in Fat32 can even facilitate the transfer between PC and Atari. Even large SD like 16Gb or 32Gb will work just fine. There 3 SD card slots
A CR2032 battery allows you to save the time and date.
The card is all ready to use. You just need an SD card and a USC type C charger. Professional built.
A QR code will give you the link to documentation and resources to use the card.
The project being open source, all the information is available here on the GitHub [acsi2stm retro16]
SD cards and CR2032 are not included in the sale.
