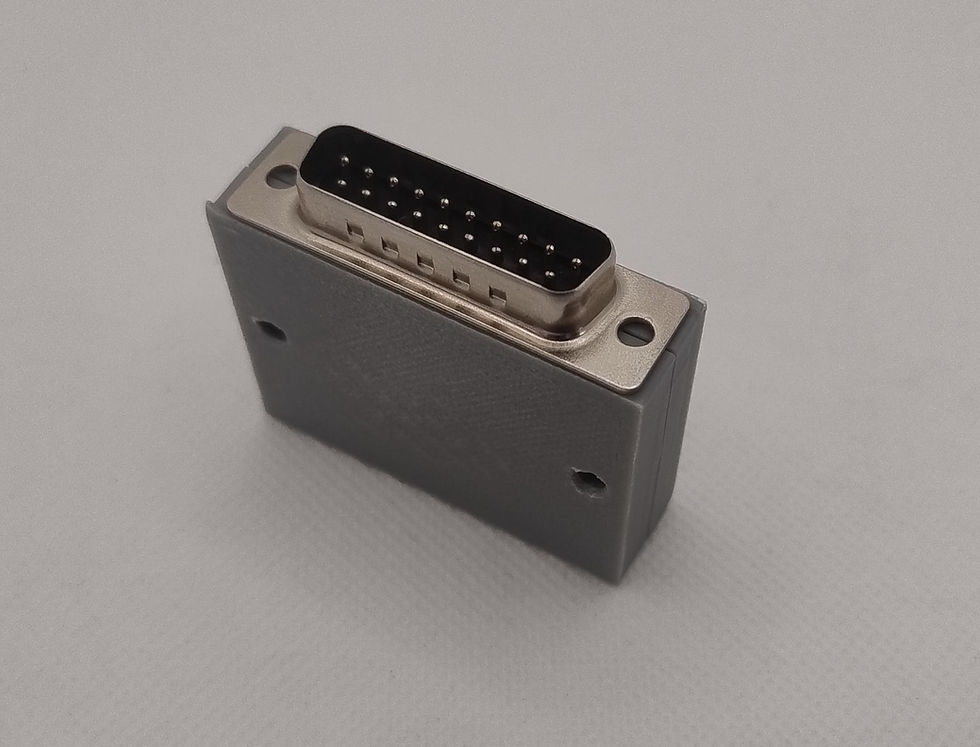

Based on the ACSI2STM hard drive emulator for Atari ST (STF, STE, MegaSTE...).
This version is a compact version. Much smaller than the original ACSI2STM card.
Difference with the original card are:
- One microSD card ready. You can have GemDrive mode or ACSI mode. But not both at the same time.
- Proper DB19 plug
- No RTC (Real Time Clock)
- Default address is 0, can be changed to 1
It is a hard disk emulator for Atari ST (STF, STE, MegaSTE...) based on ACSI2STM project.This listing is for the ACSI2STM NANO version
The mode GemDrive is working on TOS 1.04, 1.60, 1.62 and 2.06
The mode ACSI is working on all ST, STF, STE, Mega and TT (TOS 1.00, 1.02, 1.04, 1.60, 1.62, 2.06 et 3.x)
On Mega STE, the GemDrive mode is not working in 16Mhz mode.
It plugs into the machine's external ACSI port. In GemDrive mode, a microSD card formatted in Fat32 can even facilitate the transfer between PC and Atari. Even large SD like 16Gb or 32Gb will work just fine.
There is 1 SD card slots
The card is all ready to use. You just need an SD card and a USC type C charger.
Professional built.
A QR code will give you the link to documentation and resources to use the card.
The project being open source, all the information is available here on the GitHub [acsi2stm retro16]
SD cards are not included in the sale.The last photo shows the ACSI2STM NANO plugged on a MegaFile. The NANO small form allows it to fit on a MegaFile et MegaSTE without interfering with the VME orpower cable.
