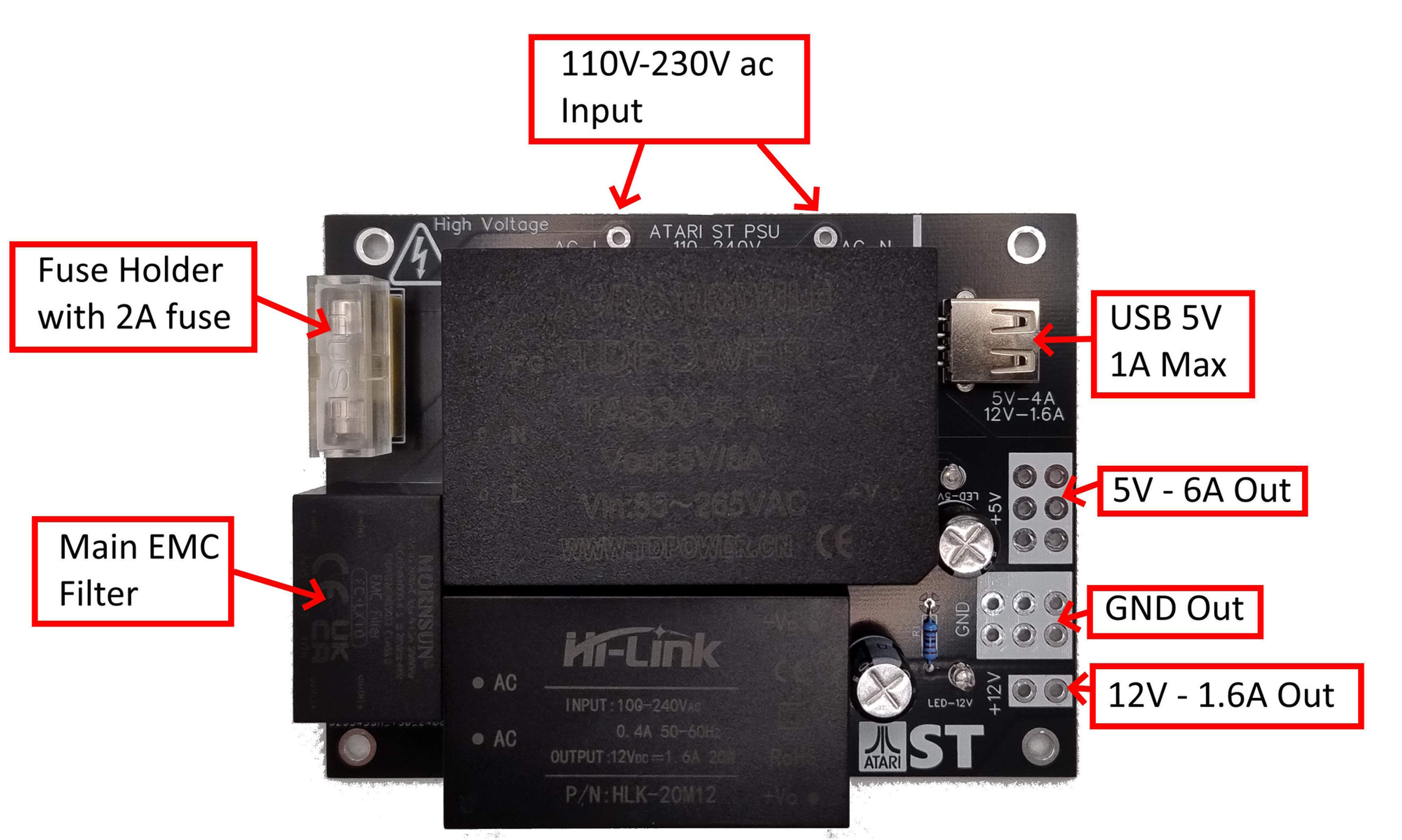

Power Supply for Atari ST family (version June 2024)
Built with modern components, this power supply is more powerful, more efficient and generate less heat.
It designed to fit on the original Atari power supply support. It fit in the same space. You can place the shield back.
It is ideal if you wish to swap your broken original PSU or to if you want more current to power additional devices such as a PiStorm, hard drive or acceleration card.
It works on with input voltage of 110V or 230V
High efficient switched power supply.
Low heat dissipation
No noise
Short circuit protection
Power Edition provide 5V@6A and 12V@1.6A
This will be more than enough for your Atari ST (STF, STFm, STE and Mega ST)
The extra power on the 5V can be used for CPU or video booster.
Installation will require some soldering in order to disconnect the original PSU and reconnect the new one.
It is compatible with all Atari STF, STFm, STE and Mega ST
The last 2 photos shows the Power Supply mounted on its support and in a Atari STE.
Support and Atari not included. You need a donor PSU. Only the PCB with the electronic is provided.The layout is based on a Mitsumi PSU. Some variante of wiring may require changing one of the wire coming from the main switch. This wire is provided.
See https://www.16-32bit.eu/atarist-psu for more details
Need even more power for your Atari ST ? Use the contact form is you require more than 6A on the 5V channel and we can see what can be done.
